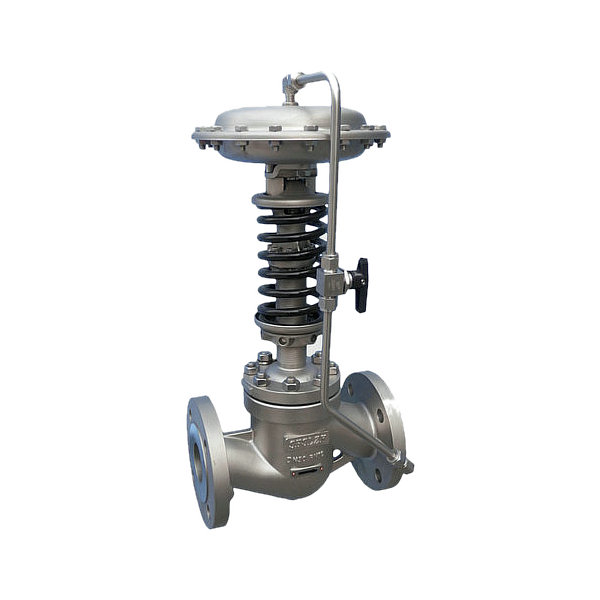

Name: Cage Type Pressure Regulating Valve

Model: SP4000

Application: It is a Spring-setting direct-operated universal pressure regulator.

It can be used for upstream and downstream pressure control.

Outlet Pressure regulating range: 3~3000KPa

Stainless Actuator: Ensure its high pressure-strength and long service life.

Standard Pressure Class: PN16,40,64      ANSI 150LB,300LB,600LB

Connection: RF flange connection

Nominal Diameter: 1-1/2 ~8 Inch, DN40 ~200

Kv values:  25 to 480

Flow Characteristics: L (Normal), EQ% (Special)

Leakage Class: Soft-sealing VI

Hard-sealing IV

Temperature Range: - 48 ~ 300 degC

Body Material: CS / SUS304 / SUS316 / SUS316L / Other materials
