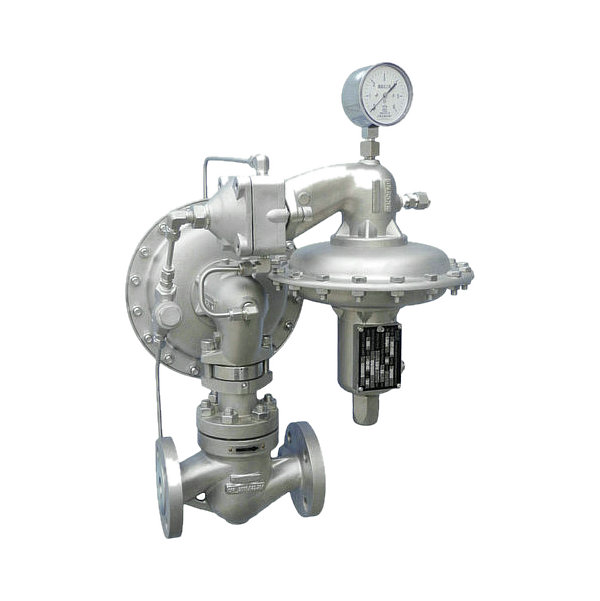

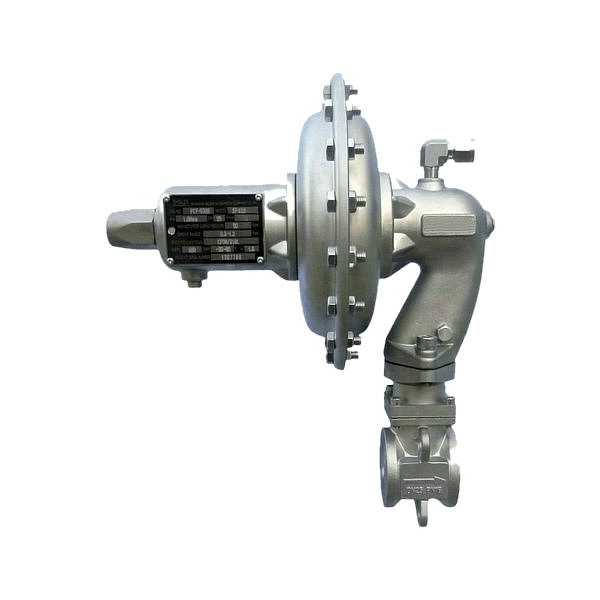

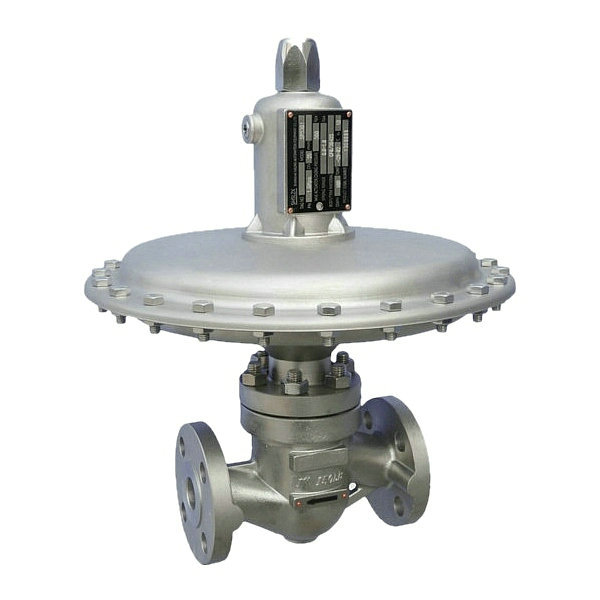

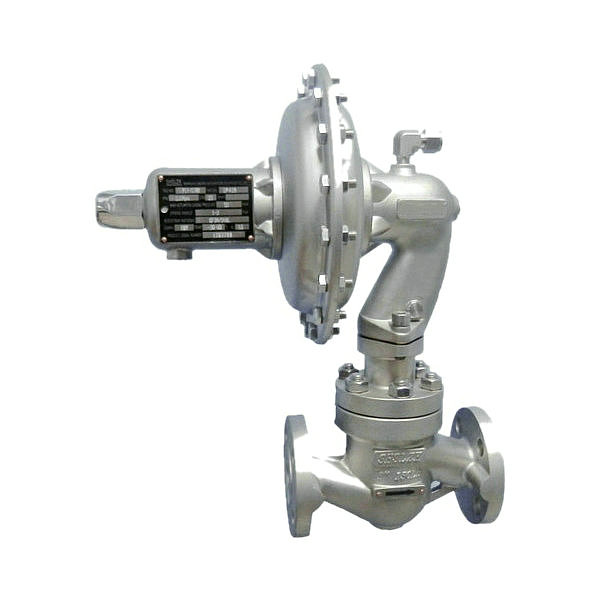

Name: Low Flow Blanketing Gas Regulating Valve (Storage tank used)

Model: SP429

Application: Storage tank protective blanketing gas, combustible gas, downstream pressure constant used.

Stainless Actuator: Ensure its high pressure-strength and long service life.

Standard Pressure Class: ANSI#150 LB, PN1.6 Mpa

Connection: Wafer connection

Nominal Diameter: 1/2 ~1 Inch, DN15 ~25

Kv values:  0.1 to 4

Flow Characteristics: L (Normal), EQ% (Special)

Leakage Class: Soft-sealing VI

Temperature Range: - 48 ~ 120 degC

Body Material: SUS304 / SUS316 / SUS316L / Other materials

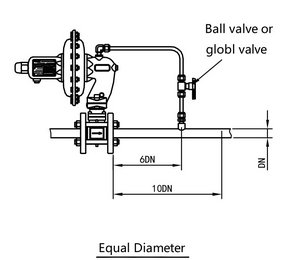

Installation:

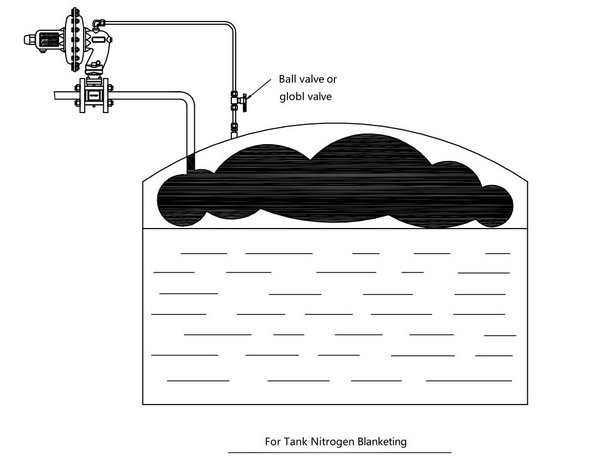

1st. Sample from tank top

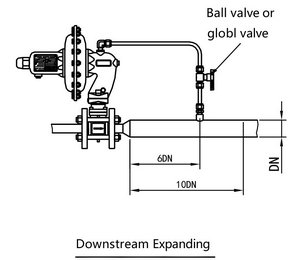

2nd. sample from downstream piping

Please contact us for more detail information.
