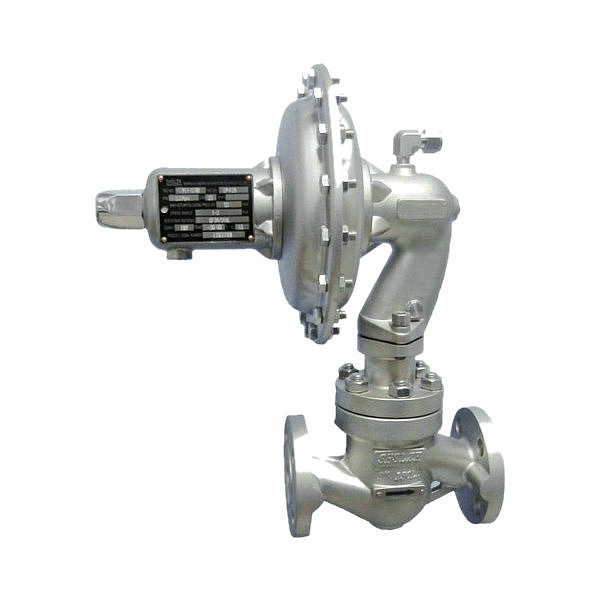

Name: Blanketing Gas Regulating Valve (Storage tank used)

Model: SP439

Application: Storage tank protective blanketing gas, combustible gas, downstream pressure constant used.

Outlet Pressure regulating range: 0.3~15KPa

Stainless Actuator: Ensure its high pressure-strength and long service life.

Standard Pressure Class: ANSI#150 / 300 / 600 LB
PN1.6 / 4.0 / 6.4 Mpa

Connection: Wafer connection

Nominal Diameter: 1/2 ~2 Inch, DN15 ~50

Kv values:  0.1 to 10

Flow Characteristics: L (Normal), EQ% (Special)

Leakage Class: Soft-sealing VI

Temperature Range: - 48 ~ 120 degC

Body Material: SUS304 / SUS316 / SUS316L / Other materials

Installation:

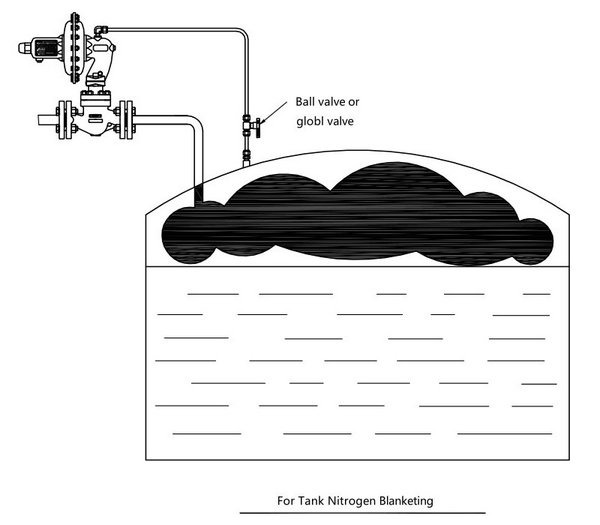

1st. Sample from tank top

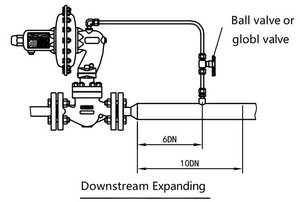

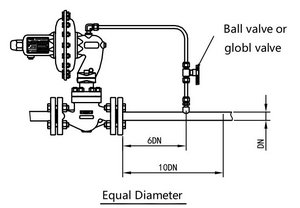

2nd. sample from downstream piping

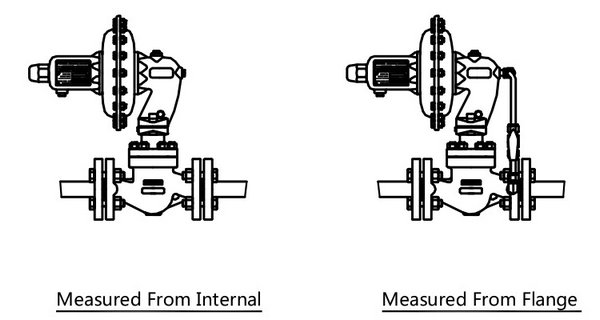

3rd. Sample from itself

Please contact us for more detail information.
