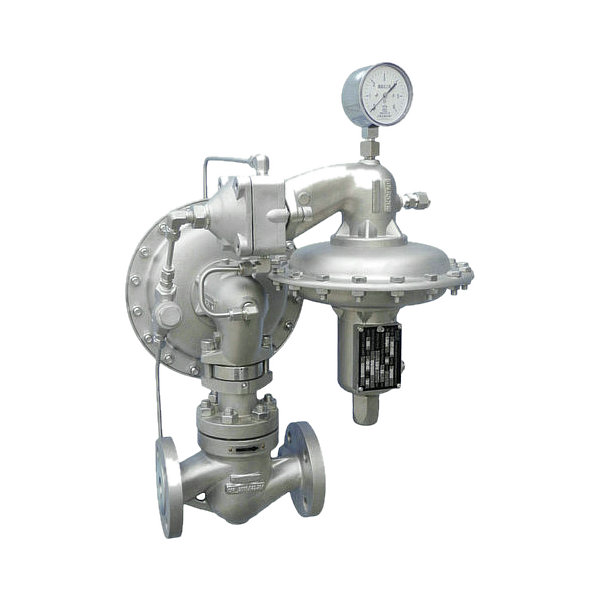

Name: High Performance Pilot Control Blanketing Gas Regulating Valve (Storage tank used)

Model: SP592

Application: Storage tank protective blanketing gas, combustible gas, downstream pressure constant used.

Outlet Pressure regulating range: 0.3~12KPa

Dynamic control precision: 2%

Stainless Actuator: Ensure its high pressure-strength and long service life.

Standard Pressure Class: PN16,40,64      ANSI 150LB,300LB,600LB

Connection: RF flange connection

Nominal Diameter: 1/2 ~4 Inch, DN15 ~100

Kv values:  0.3 to 145

Flow Characteristics: L (Normal), EQ% (Special)

Leakage Class: Soft-sealing VI

Temperature Range: - 48 ~ 120 degC

Body Material: SUS304 / SUS316 / SUS316L / Other materials

Installation:

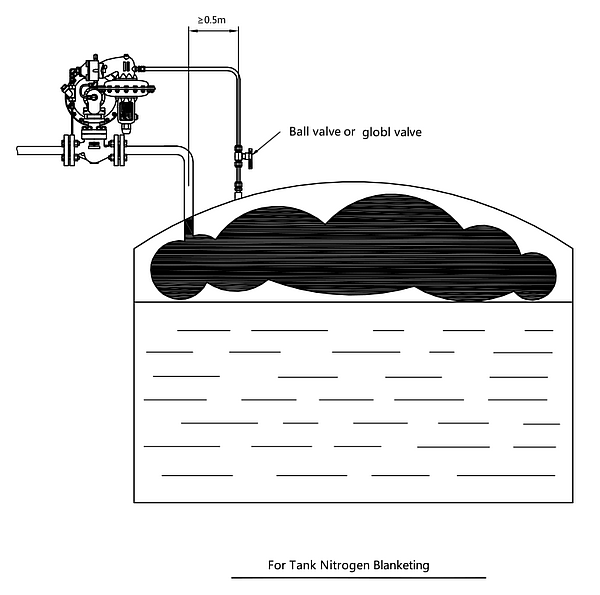

1st. Sample from tank top

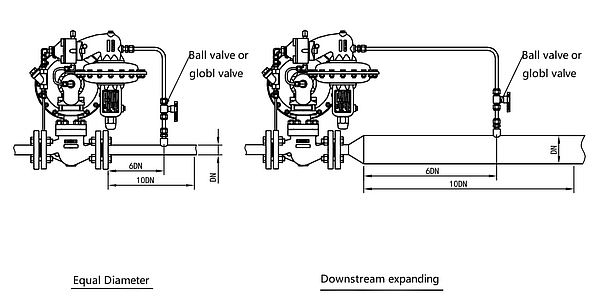

2nd. sample from downstream piping
