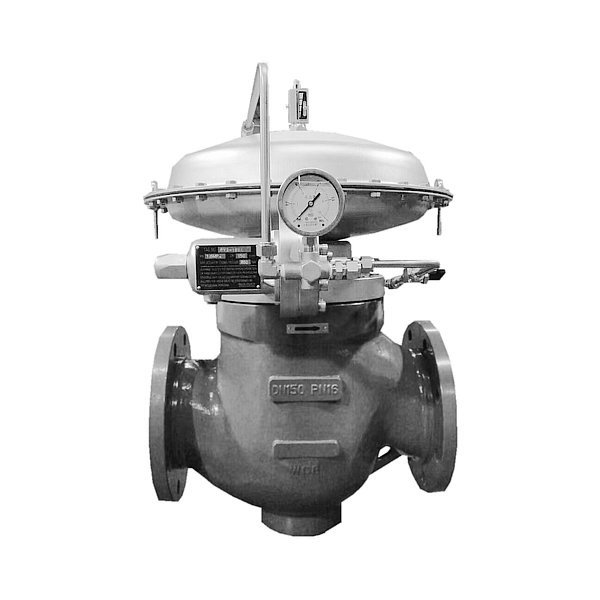

  • Internal-Setting Pilot Control Pressure Regulating Valve
Internal-Setting Pilot Control Pressure Regulating Valve

Internal-Setting Pilot Control Pressure Regulating Valve


Name: Internal-Setting Pilot Control Pressure Regulating Valve

Model: SP21M

Application: internal setting structure to set pressure control point by the internal-gas,

Used in the condition of low corrosion gas.


Outlet Pressure regulating range: 8~800KPa


Stainless Actuator: Ensure its high pressure-strength and long service life.

Standard Pressure Class: PN16,40,64      ANSI 150LB,300LB,600LB

Connection: RF flange connection

Nominal Diameter: 3/4 ~8 Inch, DN20 ~ 200

Kv values:  6 to 450

Flow Characteristics: L (Normal), EQ% (Special)

Leakage Class: Soft-sealing VI

Hard-sealing  0.003 X rating capacity of valve

Temperature Range: - 48 ~ 120 degC

Body Material: CS / SUS304 / SUS316 / SUS316L / Other materials
