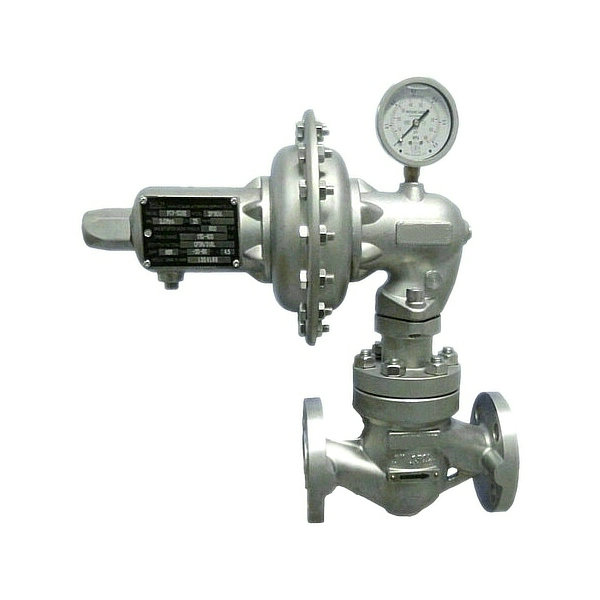

Name: Pressure Reducing Valve

Model: SP90H

Application: It is a Spring-setting direct-operated universal pressure regulator.

It is only used for downstream pressure control.

It can be applied to various types of low corrosive gas and low viscosity liquid.

Outlet Pressure regulating range: 1.3~3600KPa

Stainless Actuator: Ensure its high pressure-strength and long service life.

Standard Pressure Class: PN16,40,64      ANSI 150LB,300LB,600LB

Connection: RF flange connection

Nominal Diameter: 1/2 ~2 Inch, DN15 ~50

Kv values:  0.1 to 10

Flow Characteristics: L (Normal), EQ% (Special)

Leakage Class: Soft-sealing VI

Hard-sealing  0.003 X rating capacity of valve

Temperature Range: - 48 ~ 120 degC

Body Material: CS / SUS304 / SUS316 / SUS316L / Other materials
